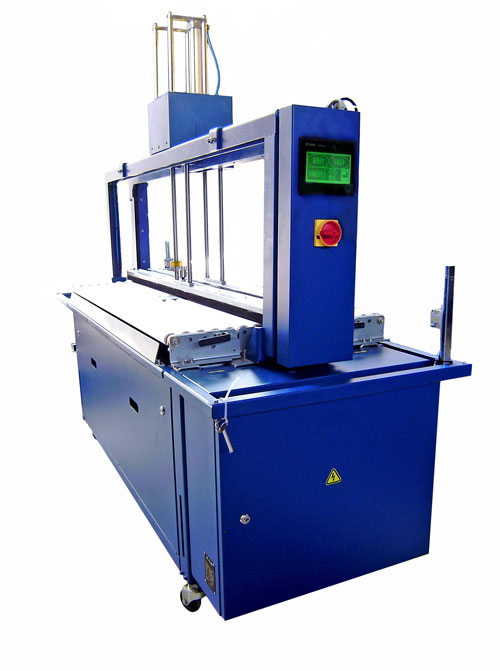

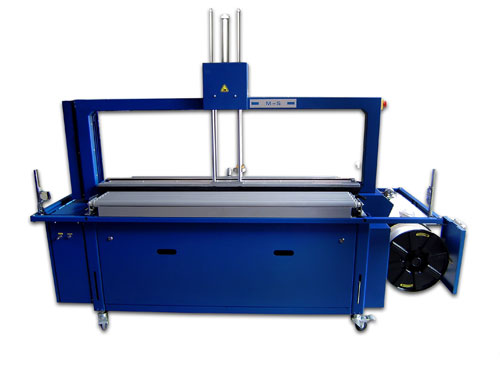

MS-TRC-5

The fully automatic strapping machine

Low maintenance
Highest rate of availability
5 - 9 mm strap








TECHNICAL SPECIFICATION:
CAPACITY:
Single strap (bundles/minute): 26
At table belt speed of  0.6m/s
Based on bundle size l x w in mm: 300 x 400mm
Actual speed depends on arch size and tension force

BUNDLES:
Min. Length:  250mm
Min. Height:  10mm
Max. Weight: 30kg
Max. bundle width depending on bundle length
Max. bundle width depending on arch size
Max. bundle height depending on arch size


TRANSPORT SPEED:
0,26 - 0,70m/s

STRAP TENSION:
Strap tension:  max.325N
Tension path :  max.200mm
Steplessly adjustable
Automatic strap tensioning, stepless, depending on height of bundle

STRAPPING MATERIAL:
Polypropylene
Width         5 – 9mm
Thickness  0,4 - 0,55mm

SEALING METHOD:
Heat seal. Tensile strength of welded joint is approx. 80% of the breaking
strength of the strap

STRAP COIL:
Core ID:   200mm
Core OD:  420mm
Wid          190mm

POWER SUPPLY: 220V;1 phase with neutral

POWER CONSUMPTION:
Total consumption approx.   1,5KW

OPERATING CONDITIONS:
Temperature range in °C [°F]: +10 [50] - +40 [104]

EQUIPMENT:
Brushless DC motor
Strap width 5 - 9 mm, adjustable
Automatic strap threading
Strap end detection system with automatic discharge of remaining strap
Strap cutter
Automatic strap tensioning, stepless
Upstream and downstream interlocks with complete plug connection
• Machine movable
Bundle press
Driven roller table, one drive per table, speed steplessly adjustable
PLC control
Electrical coil brake
Quick-change device for strap dispenser
Table height steplessly adjustable
Table top hinged
Bundle flow control
Low maintenance and low wear strap arch
Operation modes: single strap, parallel strap,multiple strap
