MS-KMCB







Fully Automatic Strapping Machine
For Corrugated Cardboards

Type: MS KMCB    Model: ACM 1300 & 1500

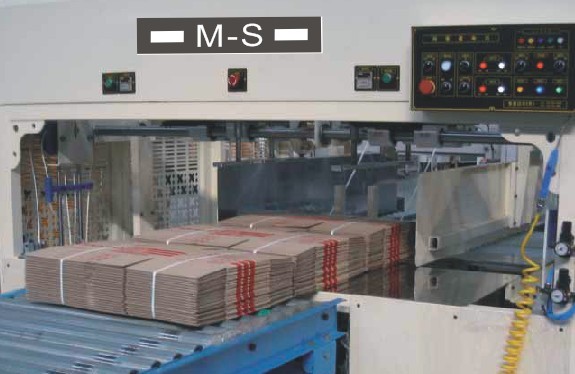

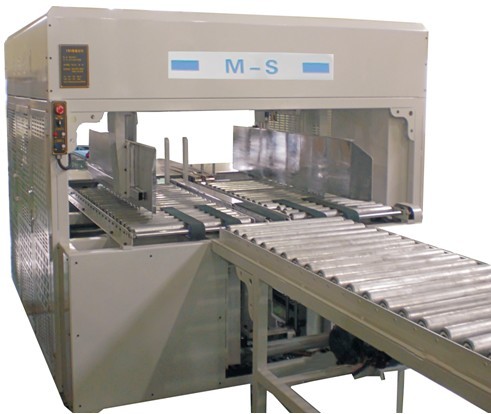

The MS-KMCB squaring and strapping system is the newest generation of corrugated bundle squarer strappers from the Company that developed the integrated squaring strapping concept. The MS-KMCB  features fast automated setup changes, smooth bundle control and transport using variable frequency drives and the latest in forking arm technology for extreme strap sealer reliability and low maintenance comparing with other system by dramatic cutting cost, Sealing capability is stable and very low error. Straps are applied in the same direction of bundle transport direction.

SYSTEM FEATURES

Super stable sealing head

LG PLC control with Proface touch panel operator interface and easyly replaced by convinent product

Integrated squaring and strapping functions

Automated setup system resets to the dimensions of the first bundle of the new size at the push   of a button or signal from the upstream equipment

Control of six sides of the bundle provides perfectly squared and uniformed bundles

Electrically driven, variable frequency controlled squaring and top/bottom conveyors provide smooth bundle transport

Choice of single or double straps to meet individual requirements

Electrically driven bundle compression

Strapping in the direction of bundle travel, typically in line with flutes

Optional exit conveyor belt for the last bundle

Very low maintenace cost and stable usage

Quick-service system in emergency situation comparing with European model



STRAPPING TECHNOLOGY

A pusher drives the bundle through pre-drape strap, placing strap on three sides. Forking arm pulls strap past the fourth side, completing the loop and activating the heat seal

Electrically controlled strap tension

Forking arm technology for swing arm and sealer

Thermocouple controlled heat sealing system reaches operating temperature in 10~20 seconds

TECHNICAL DATA
Capacity at conveyor speed of 0.6m/s
about 25cycles / min for typical box sizes

Strapping material
Common PP straps; width 5mm

Strap reel dispenser
Core diameter    200 mm
Width               190 mm
Depanding on Customer’s  demand

Electricity
Mains voltage          220 V(low) , 50/60 Hz
Power consumption  about 4.2~5 KVA

Conveyor height
800 ~ 1030 mm

Color
Frame , Panels & guards : grey,blue, Red and free on customer’s demand

Sizes                ACM 1500         ACM 1300
Length min        170 mm            170 mm
Length max       1500 mm           1150 mm

Width min         400 mm             400 mm
Width max         1500 mm           1300 mm

Height min        30 mm               30 mm
Height max        350 mm             350 mm
